X-Type Tripod Projection screen

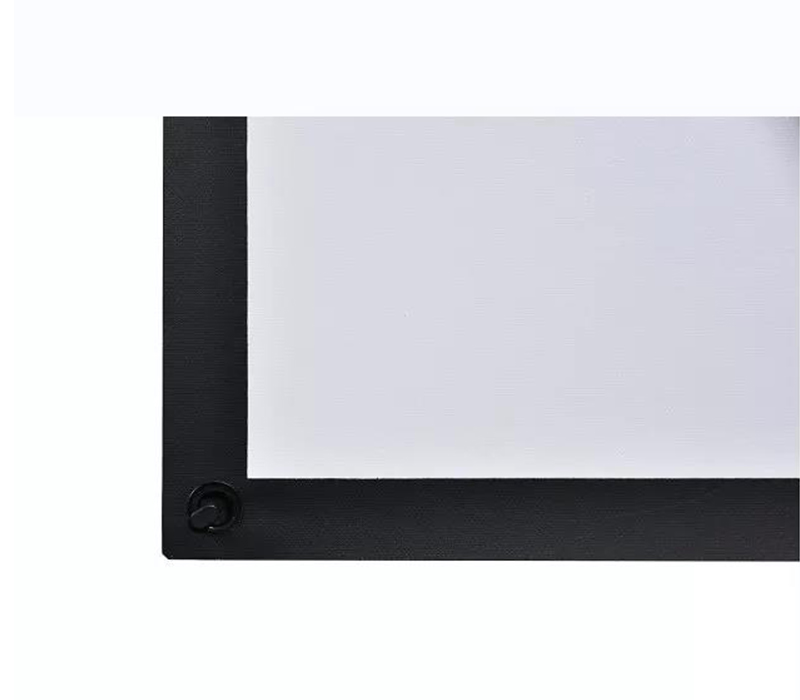

Aoxing X-Type Tripod Screen offers choice of glass fiber (1.2 gain) or woven fabric, with 4-rod spring tension for perfect flatness. Height-adjustable with aluminum/fiber tube options. Ideal for events and rentals.
- Viewing Angle：
- Gain：
- Compatible Projection：
- Screen Material：
- Frame Material：
- Available Sizes：
-

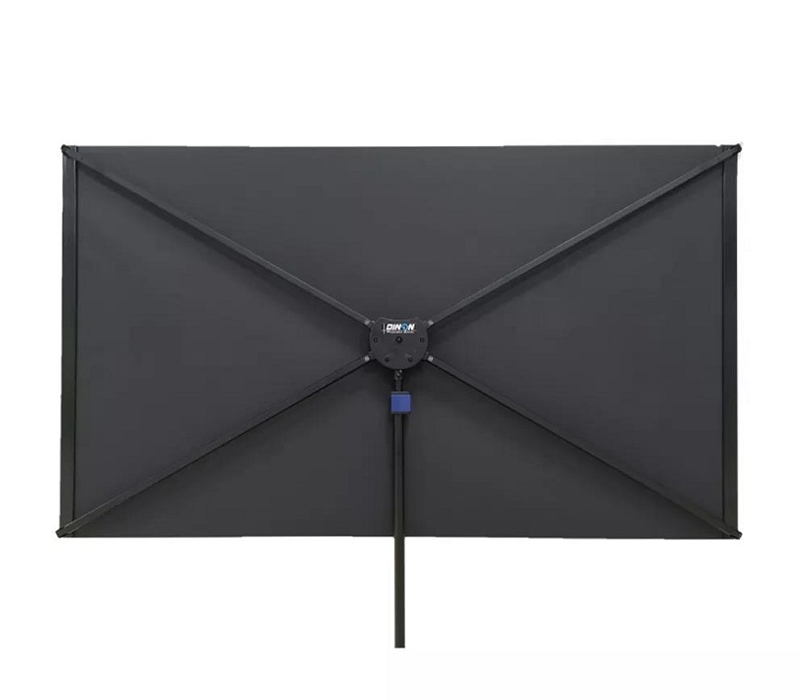

Four-Rod Spring Tension System

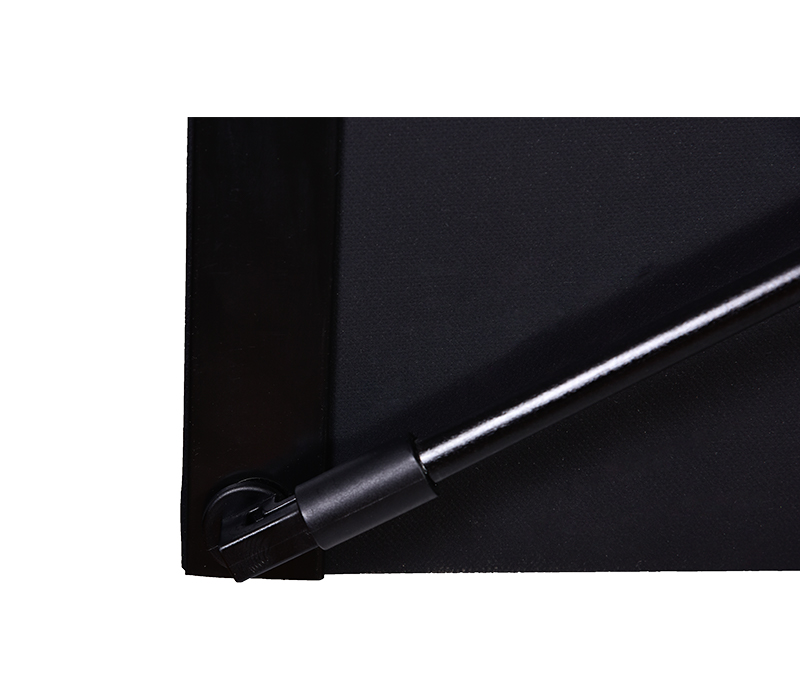

· Permanent Flatness Technology: Four independent spring-loaded rods distribute tension evenly, eliminating center-pull wrinkles
· Smart Tension Adjustment: Each spring pre-load adjustable for different fabric requirements
· Instant Flat Deployment: Screen lies flat immediately upon unfolding, no additional smoothing needed
· Anti-Slack Design: Spring system continuously compensates for micro-expansion/contraction due to temperature/humidity changes -

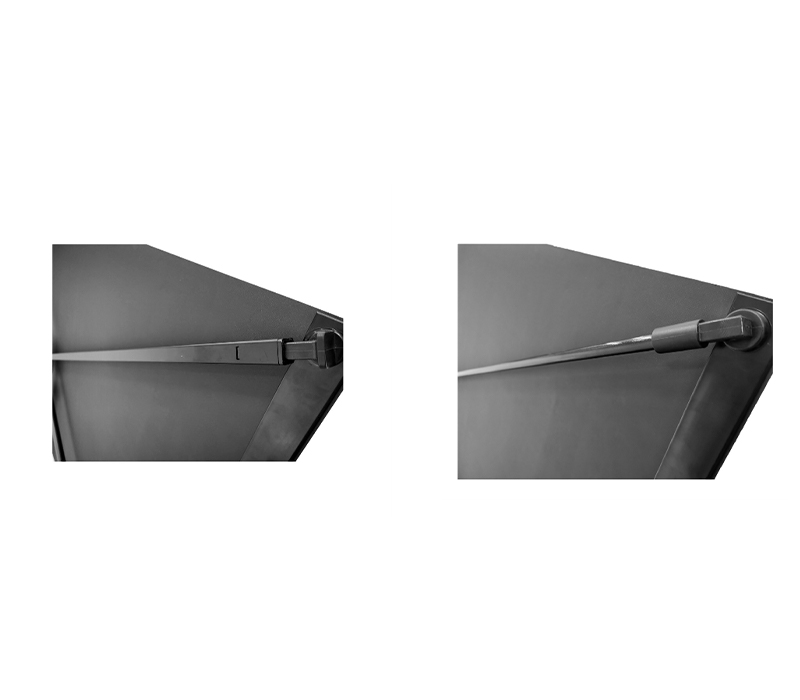

Dual-Material Support Architecture
· Aluminum Tube Option: Aerospace-grade aluminum tubes, 40% increased rigidity, ideal for permanent installs and high-frequency use
· Fiberglass Tube Option: High-strength composite fiberglass, 35% weight reduction, perfect for touring and transport -
Application Scenarios
· Large Event Touring
· Film Production Professional
· Professional Education Institutions
| Format | ID No. | Prodcut size (cm W*H) |
View Size (mm W*H) |
Black border (↑ / ↓） |
Black border (← / →） |
The curtain of edgestrip (Plastic)(mm) |
Support Tube(mm) | Packing size (mm) |
G/W（KG) |
| X-Type Tripod Projection screen–Aluminum Tube | |||||||||
| 4：3 | XTV60″ | 1290*982 | 1220*910 | 34 | 35 | 30*3.5*980 | 751.5 | 120*13*19 | 3.9 |
| XTV70″ | 1492*1135 | 1420*1070 | 34 | 35 | 30*3.5*1133 | 878.5 | 120*13*19 | 4.9 | |
| XTV80″ | 1696*1289 | 1630*1220 | 35 | 35 | 30*3.5*1287 | 1006 | 143*20*13 | 5.4 | |
| XTV90″ | 1899*1442 | 1830*1370 | 35 | 35 | 30*3.5*1440 | 1133 | 143*20*13 | 5.7 | |
| 16:9 | XTW60″ | 1398*812 | 1330*750 | 33 | 35 | 30*3.5*810 | 751.5 | 120*13*19 | 3.9 |
| XTW70″ | 1620*938 | 1550*870 | 33 | 35 | 30*3.5*936 | 878.5 | 120*13*19 | 4.9 | |
| XTW80″ | 1838*1068 | 1770*1000 | 35 | 35 | 30*3.5*1066 | 1006 | 143*20*13 | 5.4 | |
| XTW90″ | 2062*1190 | 1990*1120 | 35 | 35 | 30*3.5*1188 | 1133 | 143*20*13 | 5.7 | |
| 16:10 | XTH60″ | 1362*874 | 1290*810 | 33 | 35 | 30*3.5*872 | 751.5 | 120*13*19 | 3.9 |
| XTH70″ | 1578*1011 | 1510*940 | 35 | 35 | 30*3.5*1009 | 878.5 | 120*13*19 | 4.9 | |
| XTH80″ | 1793*1147 | 1720*1080 | 35 | 35 | 30*3.5*1145 | 1006 | 143*20*13 | 5.4 | |
| XTH90″ | 2008*1283 | 1940*1210 | 35 | 35 | 30*3.5*1281 | 1133 | 143*20*13 | 5.7 | |
