Anti-light Projection Screen
Aoxing Black Diamond Anti-Light Screen utilizes PET backing and PTU+Prism surface to absorb 95% ambient/lamplight. Ideal for ultra-short-throw laser projectors, delivering brighter, delicate imaging.
- Viewing Angle：120°
- Gain：1.8
- Compatible Projection：Ultra Short Throw
- Screen Material：PTU+Prism
- Frame Material：Aluminum
- Available Sizes：【16:9】
-
Three-Layer Composite Optical Structure
· PET Base Layer: German imported optical-grade PET film, 0.25mm thickness, provides rigid support and moisture barrier
· PTU Adhesive Layer: High light-transmittance polyurethane elastomer, refractive index 1.52, enables precise light guidance
· Prism Surface Structure: Micron-level prism array, angle tolerance ±0.1°, directionally reflects projection light -
Ambient Light Absorption Principle
· Multi-Layer Absorption: Ambient light attenuated three times through prism, PTU, and PET layers
· Wavelength Selectivity: 95% absorption rate for 550-650nm ambient light spectrum
· Projection Light Optimization: 85% reflectivity for projector output spectrum (380-780nm)
· Anti-Glare Treatment: Micro-textured surface diffusion eliminates specular reflection hotspots -

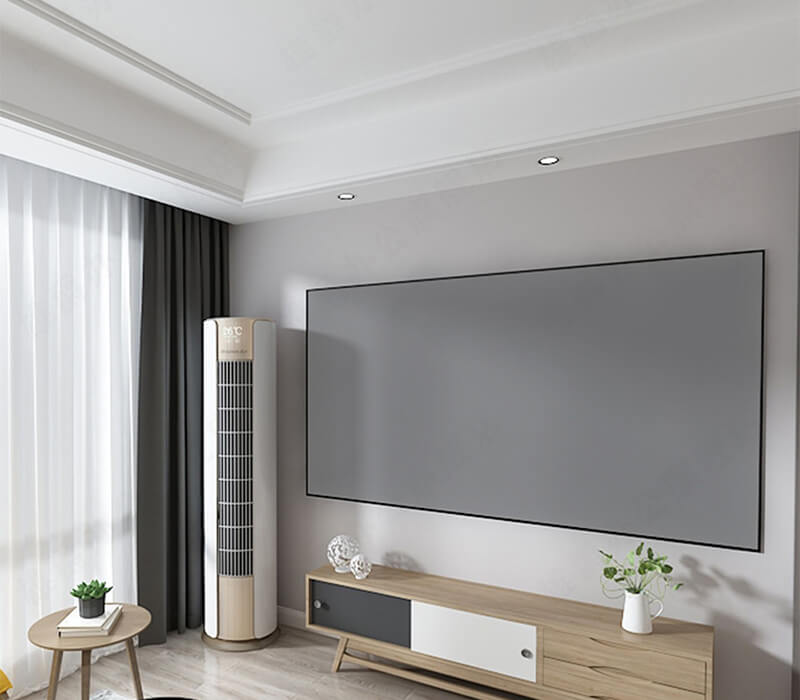

Application Scenarios
· Cinema Home
· Business Presentation Pro Version -

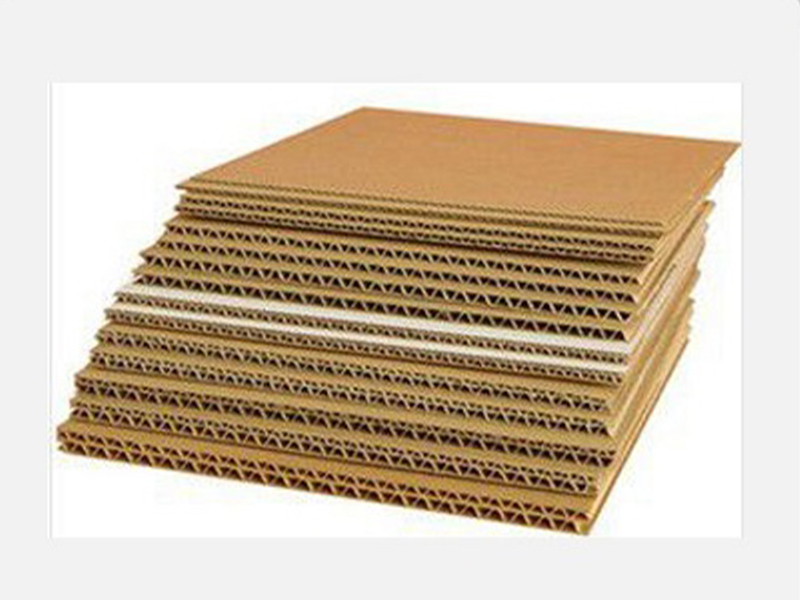

Sturdy packaging
The packing paper is made of 300g imported high-qualitycattle card from the United States. At the same time, it usesa double A pit design, which can withstand breaking up to30KG, protecting every position of the screen.
The packing box is designed with double-layer cornerprotection, and the drop test index is 30% higher than thatof the traditional single-layer corner protection, makingtransportation safer.
The packaging box has a lighter and thinner design underthe same strength, and the volume is reduced by 15%compared with the traditional carton, making it easier toenter the home
| ID No. | Prodcut size (mm W*H)/ Diagonal |
View Size (mm) |
Format | Fabric | Gain | View angle | Frame (↑ / ↓） mm |
Frame (← / →） mm |
Frame | Packing size (mm) | G/W（KG) |
| ATL100-N | 2228*1259/100″ | 2210*1250 | 16:9 | PET+PTU Prism structure | 0.45 | ≥70° | 2234 | 1265 | Aluminum | 2460*260*120 | 15 |
| ATL120-N | 2671*1508/120″ | 2580*1620 | 16:9 | 0.45 | ≥70° | 2677 | 1514 | Aluminum | 2830*260*120 | 17 |
