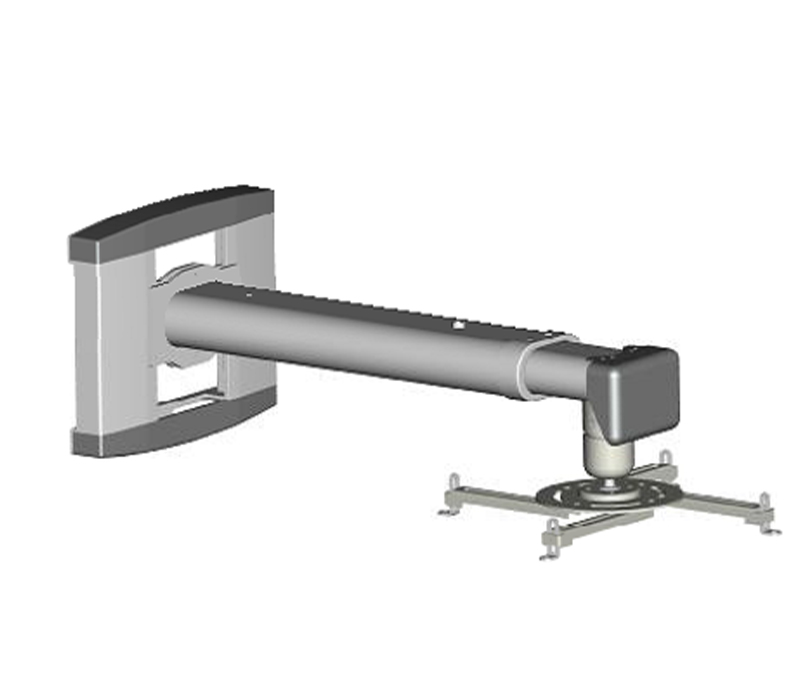

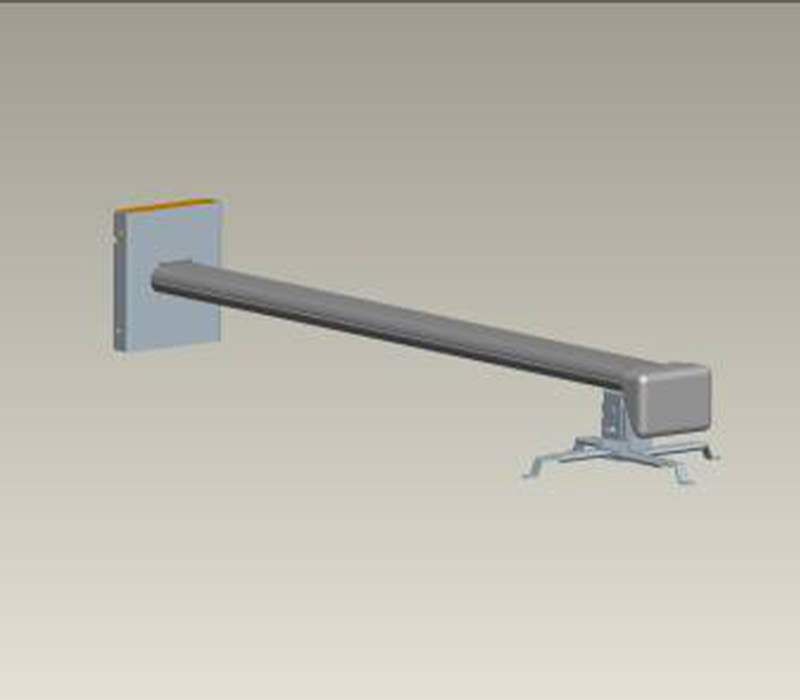

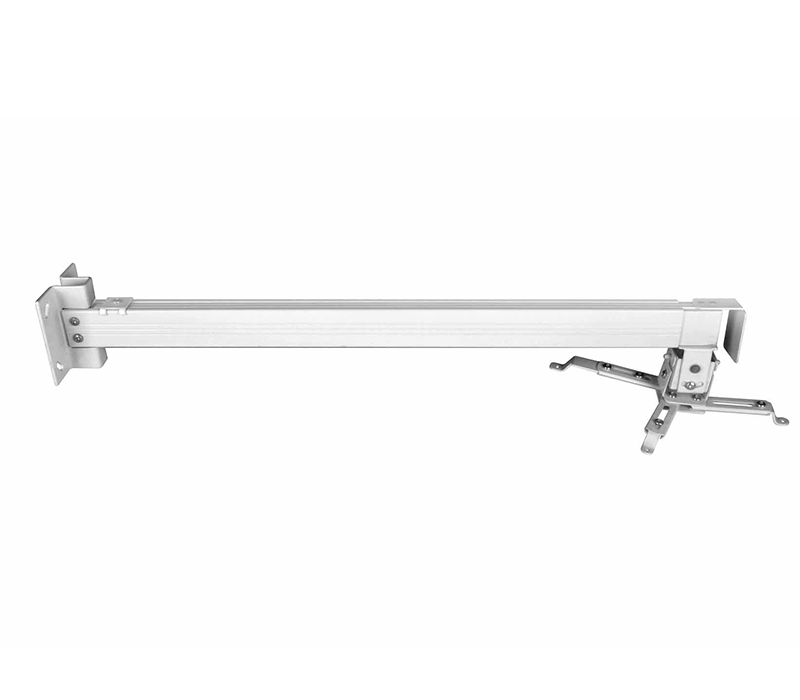

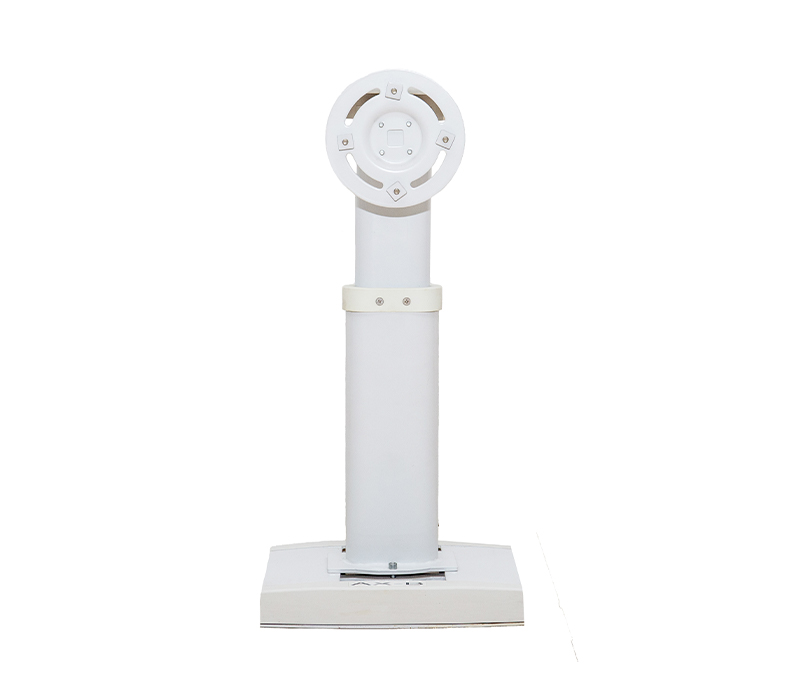

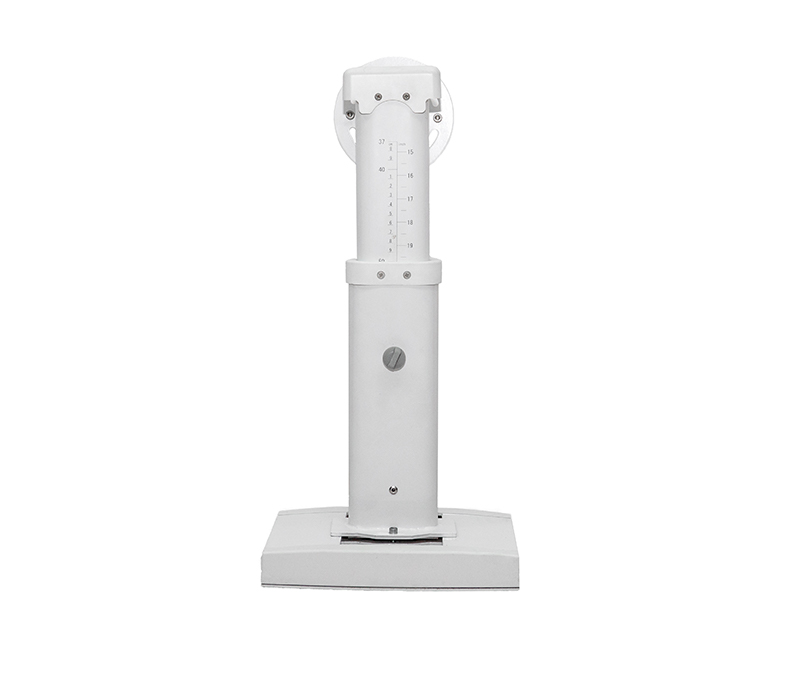

Short Throw Mount
- Different size can meet different ultra short throw and short throw projector requirements.
- Ajustable distance for projection distance.
- Flexible adjustment : easy, convenient and firmly.
- 360° rotation allows maximum viewing ability.
- It offers flexible projector positioning with four adjustable support arms that can fit a wide range of mounting holes
- The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment.
-

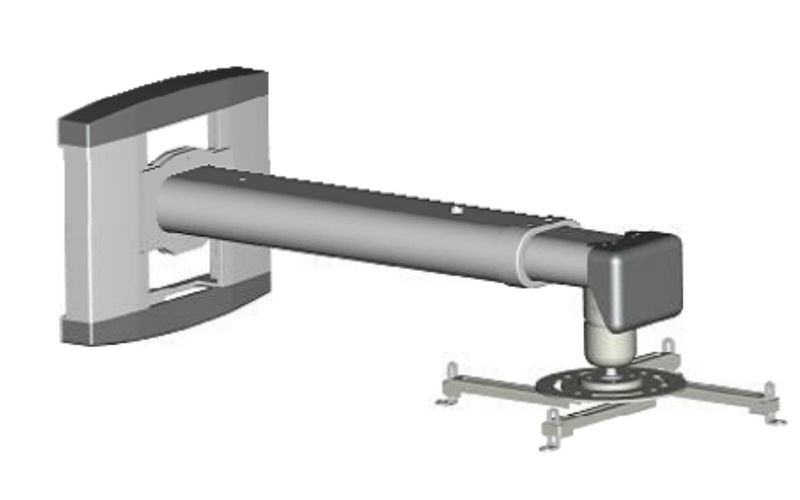

AX-A series short throw mount
1.Wall mount base adjustable distance at up and down side:±41mm
2.Wall mount base adjustable distance at left and right side: ±50mm
3.Pawl adjustable distance: 100mm
4.Projector connecting leg adjustable distance at up and down side
5.Angle universal adjustment, front and back, left and right direction function at horizontal movement.
-

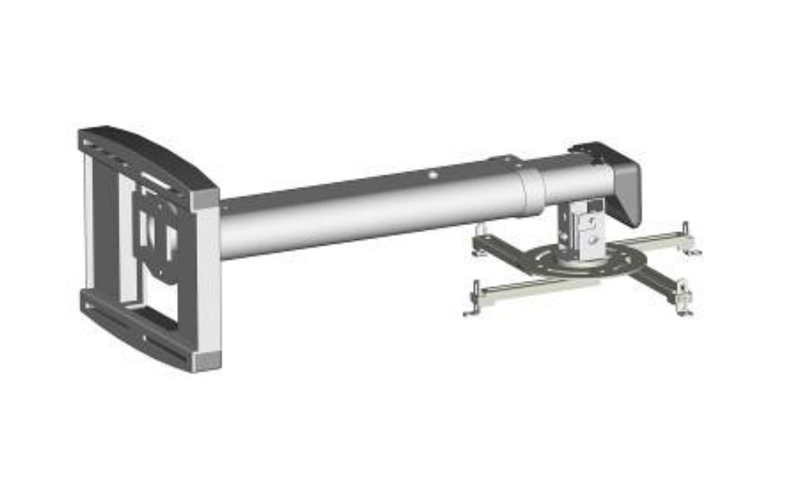

AX-B series short throw mount
1.Wall mount base adjustable distance at up and down side:±41mm
2.Wall mount base adjustable distance at left and right side: ±50mm
3.Pawl installation distanceΦ265-380mm
4.Projector connecting leg adjustable distance at up and down side: 20mm
5.Left and right angle adjustment +/-24
6.Front and back angle adjustment +/-10
-

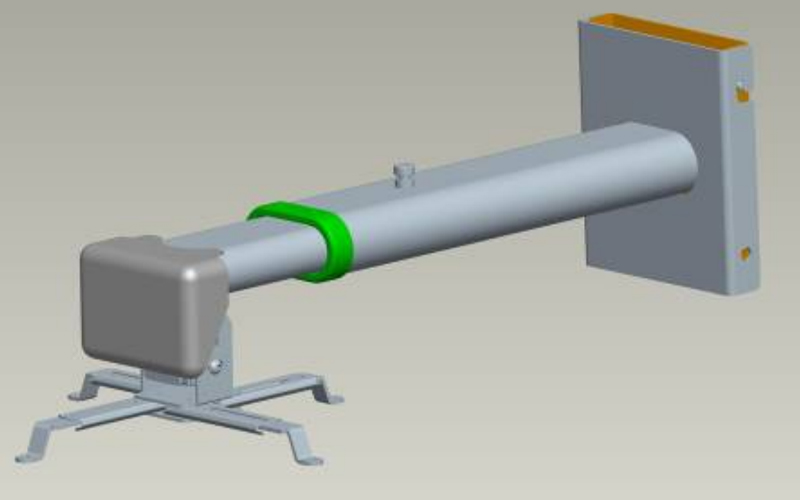

AX-C series short throw mount
1.Wall mount base adjustable distance at up and down side:±22mm
2.Pawl installation distanceΦ200-260mm
3.Left and right angle adjustment +/-20
4.Front and back angle adjustment +/-10
5.Left and right horizontal direction angle adjustment +/-5
-

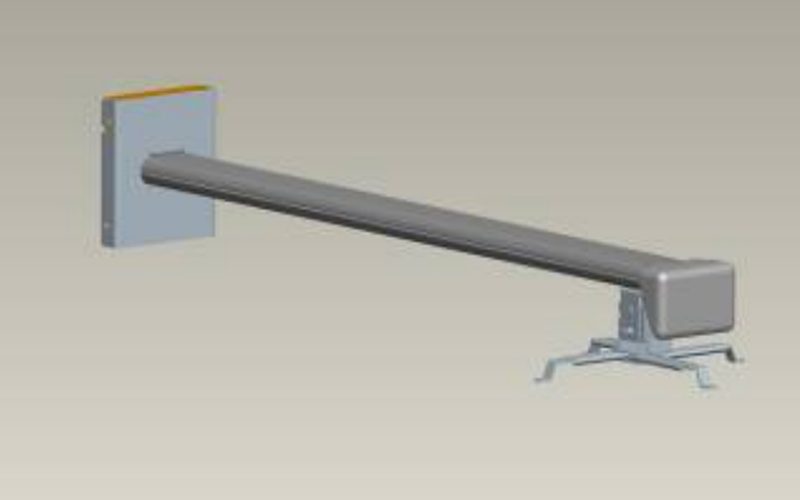

AX-D series short throw mount
1.Wall mount base adjustable distance at up and down side:±22mm
2.Pawl installation distanceΦ200-260mm
3.Left and right angle adjustment +/-20
4.Front and back angle adjustment +/-10
5.Left and right horizontal direction angle adjustment +/-5
-

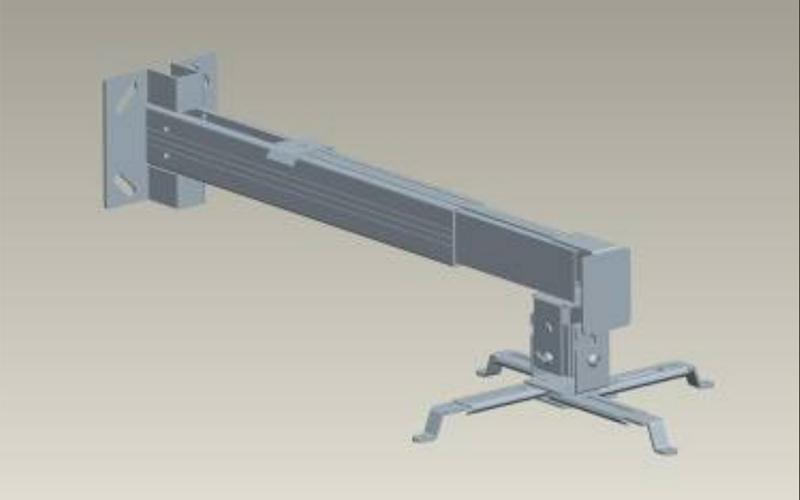

AX-E series short throw mount
1.Pawl installation distanceΦ200-260mm
2.Left and right angle adjustment +/-10
3.Front and back angle adjustment +/-20
4.Left and right horizontal direction angle adjustment +/-5
| Product | ID no. | Height Adjustable (mm) |
Available Color |
Material | Product Size (mm) | Packing Size (mm) |
| AX-A series short throw mount | ||||||
| AX-A series short throw mount | AX-001A | 370-500 | White | Steel | 370-500 | 435*250*175 |
| AX-002A | 470-700 | 470-700 | 540*250*175 | |||
| AX-003A | 700-1170 | 700-1170 | 770*250*175 | |||
| AX-004A | 880-1510 | 880-1500 | 940*250*175 | |||
| AX-B series short throw mount | ||||||
| AX-B series short throw mount | AX-001B | 370-500 | White | Steel | 370-500 | 435*250*175 |
| AX-002B | 470-700 | 470-700 | 540*250*175 | |||
| AX-003B | 700-1170 | 700-1170 | 770*250*175 | |||
| AX-004B | 880-1510 | 880-1500 | 940*250*175 | |||
| AX-C series short throw mount | ||||||
| AX-C series short throw mount | AX-001C | 370-575 | White | Steel | 370-575 | 445*240*190 |
| AX-002C | 500-736 | 500-736 | 575*240*190 | |||
| AX-003C | 700-1200 | 700-1200 | 775*240*190 | |||
| AX-004C | 915-1600 | 915-1600 | 980*240*190 | |||
| AX-D series short throw mount | ||||||
| AX-D series short throw mount | AX-001D | 290-600 | White | Steel | 290-600 | 715*260*185 |
| AX-002D | 590-900 | 590-840 | 1015*260*185 | |||
| AX-003D | 890-1200 | 890-1140 | 1315*260*185 | |||
| AX-E series short throw mount | ||||||
| AX-E series short throw mount | AX-001E | 370-650 | White | Steel | 370-650 | 455*190*150 |
| AX-002E | 500-850 | 500-850 | 605*190*150 | |||
| AX-003E | 700-1200 | 700-1200 | 780*190*150 | |||
