Standard Manual Screen (Advance)

Aoxing Standard Manual Screen offers exceptional value with slow return system, elegant white housing, and 1.2 gain fabric. Adjustable height, wall/ceiling mountable. Perfect for budget installations.

Viewing Angle：160°
Gain：1.2
Compatible Projection：
Screen Material：
Frame Material：
Available Sizes：

Chat Now Message Email

Description
Parameters

Professional-Grade Image Assurance

· 1.2 Gain Professional Material: Multi-layer composite optical coating balances brightness with color accuracy, suitable for educational display and home viewing

· Opaque Black Backing: Effectively blocks ambient light interference, improves image contrast up to 25%, ensuring clear content readability

· Enhanced Visual Performance: Optimized surface diffusion technology ensures uniform brightness across 160° wide viewing angle, ideal for multi-viewer environments

· Long-Term Durability: Screen material passes 2,000-hour anti-aging testing, ensuring stable image quality over long-term use

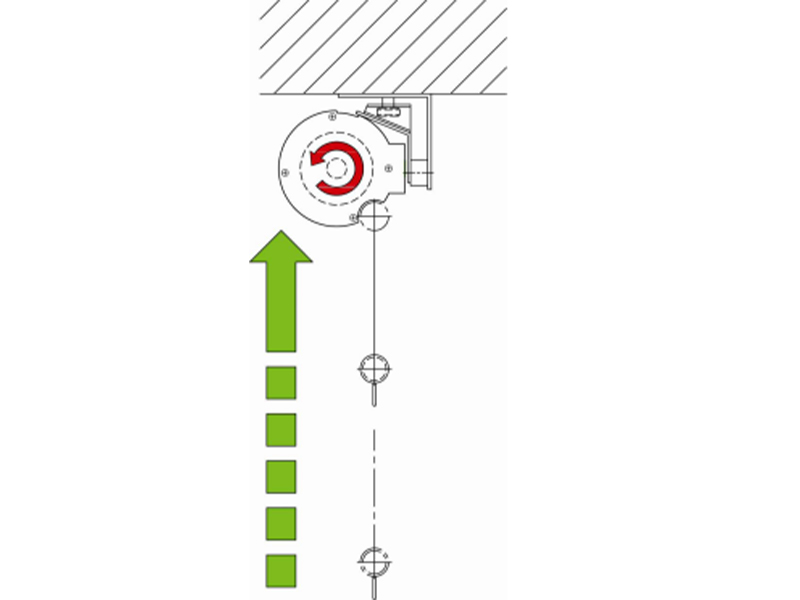

Elegant Slow-Return System

· Smooth Slow-Return Mechanism: A custom spring damping system enables uniform and stable retraction

· Library-Grade Quietness: Operation noise below 28dB, won't interfere with classroom teaching or home viewing

· Durability Verified: Slow-return system passes 5,000 cycle tests, ensures long-term reliable operation

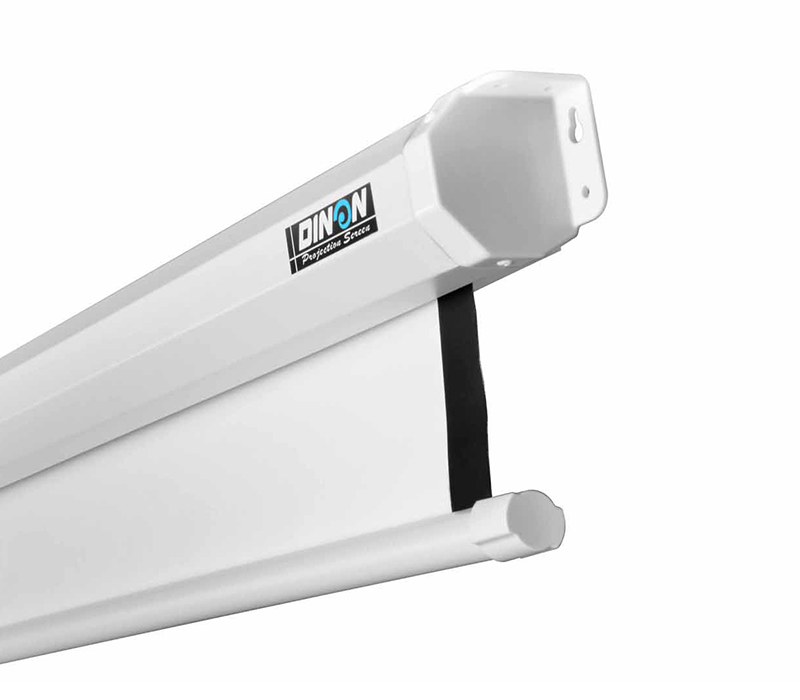

Elegant White Appearance

· Modern White Casing: High-gloss white eco-friendly coating with anti-yellowing treatment maintain beauty for a long time

· Minimalist Line Design: Streamlined housing contour, only 10cm thickness, modern and simple integration into various environments

· Multi-Scenario Adaptation: The white appearance perfectly matches classrooms, training rooms, modern homes and various other decorative styles

· Easy-Clean Surface: Anti-stain coating treatment, daily dust and stains wipe clean easily, simple maintenance
Application Scenarios

· Education & Training Environments

· Small/Medium Business Offices

· Entry-Level Home Entertainment

Format	ID NO.	Product Size (WxH cm)	View area (WxH mm)	Black drop (cm)	Black border ↓ / ← / → (cm)	Housing dimensions LxWxH（mm)	Housing Shape/Material	Housing Diameter (mm)	Packing Size LxWxH(cm)	Decelerator Type
1:1	DMS160s	160×160	1540×1540	/	0cm/3cm/3cm	1725x72x90	Octagon/Iron	55	1811312	Damping oil
	DMS180s	180×180	1740×1740	/	0cm/3cm/3cm	1925x72x90	Octagon/Iron	55	2011312	Damping oil
	DMS200s	200×200	1940×1940	/	0cm/3cm/3cm	2125x72x90	Octagon/Iron	65	2181412	Damping oil
	DMS220s	220×220	2140×2140	/	0cm/3cm/3cm	2325x72x90	Octagon/Iron	65	2381412	Damping oil
	DMS240s	240×240	2340×2340	/	0cm/3cm/3cm	2525x72x90	Octagon/Iron	65	2581412	Damping oil
	DMS280s	280×280	2700×2700	5cm	5cm/5cm/5cm	2920x103x130	hexagon/Iron	92	3022016	Gear wheel
	DMS300s	300×300	2900×2900	5cm	5cm/5cm/5cm	3120x103x130	hexagon/Iron	92	3222016	Gear wheel
4:3	DMV160s	160×120	1540×1155	5cm	3cm/3cm/3cm	1725x72x90	Octagon/Iron	55	1811312	Damping oil
	DMV180s	180×135	1740×1305	5cm	3cm/3cm/3cm	1925x72x90	Octagon/Iron	55	2011312	Damping oil
	DMV200s	200×150	1940×1455	5cm	3cm/3cm/3cm	2125x72x90	Octagon/Iron	65	2181412	Damping oil
	DMV220s	220×165	2140×1605	5cm	3cm/3cm/3cm	2325x72x90	Octagon/Iron	65	2381412	Damping oil
	DMV240s	240×180	2340×1755	5cm	3cm/3cm/3cm	2525x72x90	Octagon/Iron	65	2581412	Damping oil
	DMV280s	280×210	2700×2025	5cm	5cm/5cm/5cm	2920x103x130	hexagon/Iron	92	3022016	Gear wheel
	DMV300s	300×225	2900×2175	5cm	5cm/5cm/5cm	3120x103x130	hexagon/Iron	92	3222016	Gear wheel
16:9	DMW160s	160×90	1540×866	25cm	3cm/3cm/3cm	1725x72x90	Octagon/Iron	55	1811312	Damping oil
	DMW180s	180×102	1740×979	25cm	3cm/3cm/3cm	1925x72x90	Octagon/Iron	55	2011312	Damping oil
	DMW200s	200×113	1940×1091	25cm	3cm/3cm/3cm	2125x72x90	Octagon/Iron	65	2181412	Damping oil
	DMW220s	220×124	2140×1204	25cm	3cm/3cm/3cm	2325x72x90	Octagon/Iron	65	2381412	Damping oil
	DMW240s	240×135	2340×1316	25cm	3cm/3cm/3cm	2525x72x90	Octagon/Iron	65	2581412	Damping oil
	DMW280s	280×158	2700×1519	25cm	5cm/5cm/5cm	2920x103x130	hexagon/Iron	92	3022016	Gear wheel
	DMW300s	300×169	2900×1631	25cm	5cm/5cm/5cm	3120x103x130	hexagon/Iron	92	3222016	Gear wheel
16:10	DMH160s	160×100	1540×963	25cm	3cm/3cm/3cm	1725x72x90	Octagon/Iron	55	1811312	Damping oil
	DMH180s	180×113	1740×1088	25cm	3cm/3cm/3cm	1925x72x90	Octagon/Iron	55	2011312	Damping oil
	DMH200s	200×125	1940×1213	25cm	3cm/3cm/3cm	2125x72x90	Octagon/Iron	65	2181412	Damping oil
	DMH220s	220×138	2140×1338	25cm	3cm/3cm/3cm	2325x72x90	Octagon/Iron	65	2381412	Damping oil
	DMH240s	240×150	2340×1463	25cm	3cm/3cm/3cm	2525x72x90	Octagon/Iron	65	2581412	Damping oil
	DMH280s	280*175	2700×1688	25cm	5cm/5cm/5cm	2920x103x130	hexagon/Iron	92	3022016	Gear wheel
	DMH300s	300*188	2900×1813	25cm	5cm/5cm/5cm	3120x103x130	hexagon/Iron	92	3222016	Gear wheel
