Premium Square Electric Screen(Advance)

The Aoxing Premium Square Electric Screen combines cinema-grade glass fabric with a triangular weighted bar for perfect flatness. Featuring a black opaque backing and optional global plug compatibility.

Viewing Angle：160°
Gain：1.2
Compatible Projection：
Screen Material：
Frame Material：
Available Sizes：【1:1】【4:3】【16:9】【16:10】

Chat Now Message Email

Description
Parameters

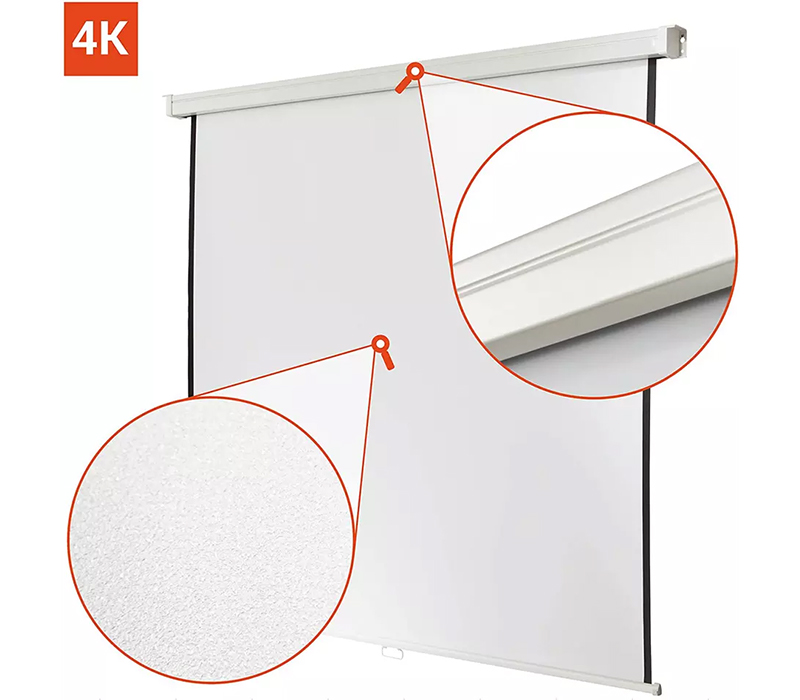

Cinema-Grade Glass Fiber Surface

· Multi-Layer Optical Glass Fiber: High-density glass fiber substrate with professional optical coating achieves mirror-grade reflective flatness

· Zero Thermal Expansion Deformation: Special temperature stabilization treatment, no fluctuation deformation from -10℃ to 50℃

· 1.2 Gain Accurate Reproduction: Neutral white base layer accurately reproduces DCI-P3/Rec.709 color gamut, meets professional screening needs

· Ultra-Wide-Angle Uniformity: Patented diffusion coating ensures <5% brightness deviation and >95% color consistency across 160° viewing angle

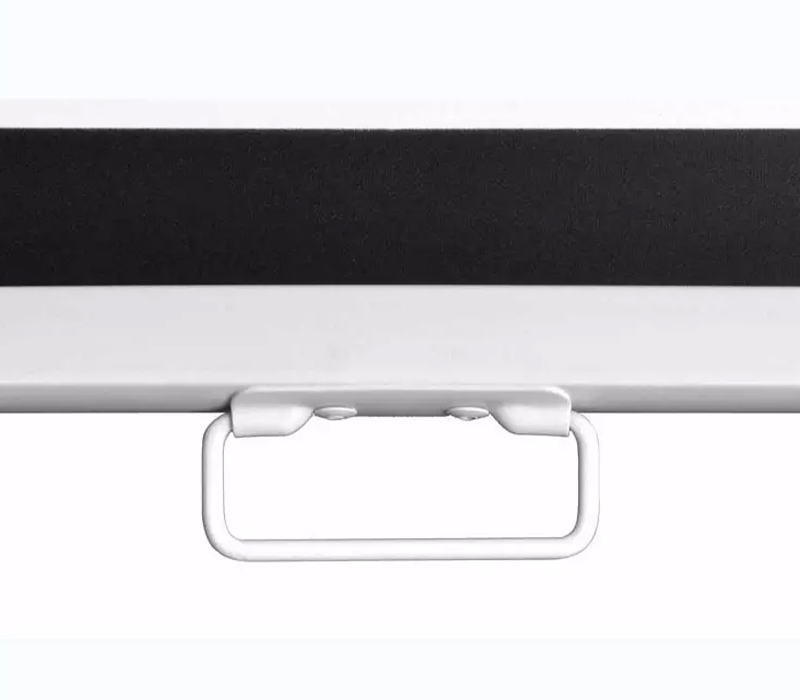

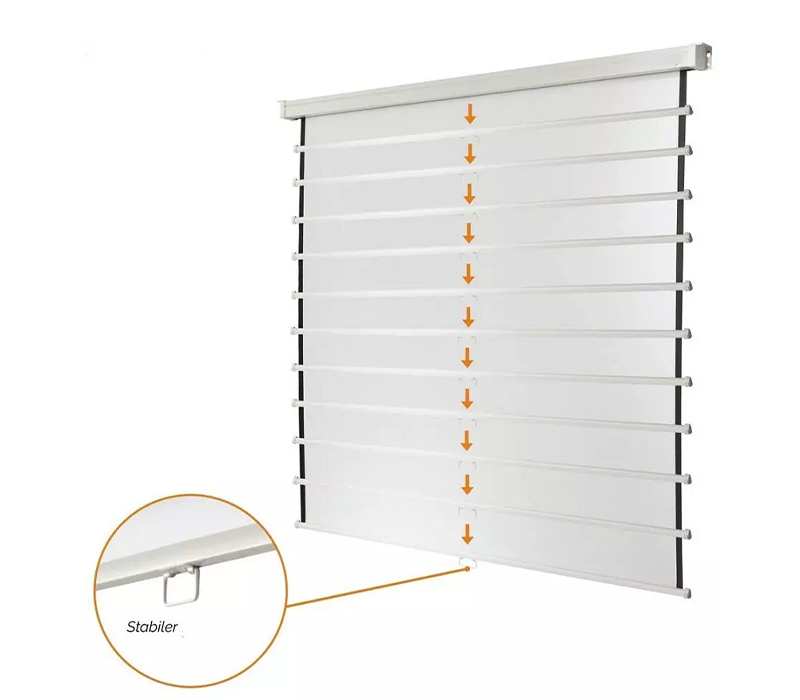

Triangular Weighted Bar System

· Innovative Triangular Section Design: Aluminum alloy triangular weighted bar auto-deploys during descent for even downward force

· Fully Hidden Storage: The weighted bar sits completely flush with the casing when retracted, maintaining the square appearance integrity

· Multi-Point Pressure Balance: The three-surface contact design ensures even edge pressure and eliminates V-waves

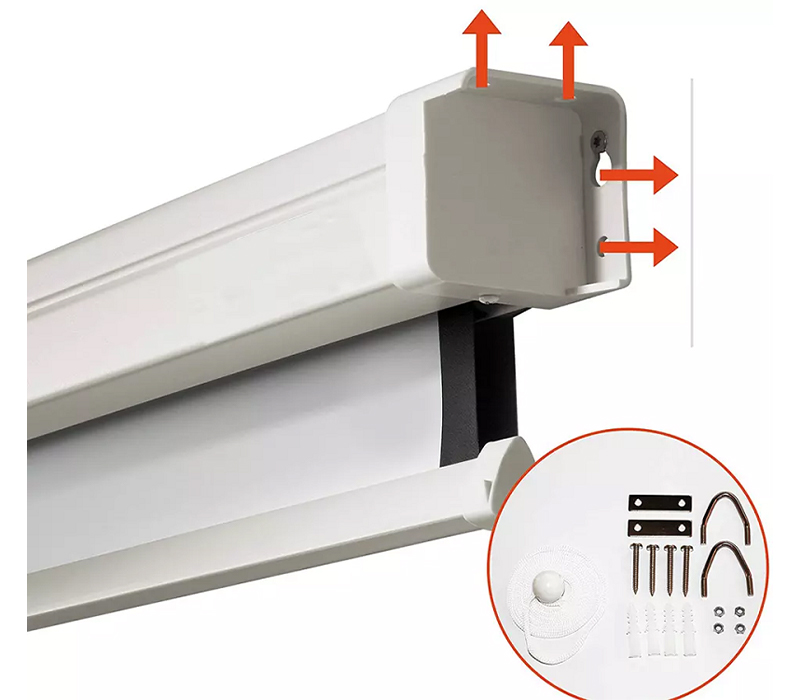

Industrial Square Casing

· Thickened Aluminum Frame: 3mm aviation aluminum square housing with sandblasted anodized surface

· Right-Angle Aesthetic Design: 90° right-angle frame, modern minimalist style suitable for high-end commercial and home environments

· Dual-Layer Sound Insulation: Sound-absorbing lining inside the housing, operation noise <20dB, meeting studio quiet standards

· Modular End Caps: Removable end caps for later maintenance and internal inspection are more convenient
Precision Tubular Motor System

· German Precision Tubular Motor: High-torque synchronous motor with 35kg load capacity supports up to 200" screens

· Hall Sensor Positioning: 0.1mm repeat positioning accuracy, supports 20 custom scene memories

· Intelligent Soft Start/Stop: The acceleration control algorithm ensures smooth and impact-free start/stop, protecting the screen material's lifespan

· Overheat Protection: Temperature sensor real-time monitoring, auto-shutdown at abnormal temperature
Intelligent Control System

· Dual-Band Remote System: Standard learning IR remote, optional RF remote upgrade (50m wall-penetration radius)

· Intelligent Voltage Adaptation: 100-240V AC wide voltage auto-recognition, 50/60Hz global compatibility

· Safety Isolation Design: Double insulation protection, passes CE, UL, CCC multi-country safety certifications
Application Scenarios

· Premium AV Spaces：Professional Screening Rooms、Custom Home Theaters

· Top-Tier Commercial Environments：Boardroom Strategy Rooms

· Professional Education & Research：University Research Centers、Planetariums/Science Museums

Format	ID NO.	Product Size (WxH cm)	View area (WxH mm)	Black drop (cm)	Black border ↓ / ← / → (cm)	Housing Shape/Material	Housing dimensions LxWxH(mm)	Packing Size LxWxH(mm)
1:1	ESS180	180×180	1720×1720	/	/	Square/Aluminum	1975x108x96	2038x168x198
	ESS200	200×200	1920×1920	/	/	Square/Aluminum	2175x108x96	2238x168x198
	ESS240	240×240	2320×2320	/	/	Square/Aluminum	2575x108x96	2638x168x198
	ESS280	280×280	2720×2720	/	/	Square/Aluminum	2975x108x96	3038x168x198
	ESS300	300×300	2920×2920	/	/	Square/Aluminum	3175x108x96	3238x168x198
	ESS360	360×360	3500×3500	/	/	Square/Aluminum	3775x108x96	3838x168x198
4:3	ESV180	180×135	1700×1275	5cm	5cm/5cm/5cm	Square/Aluminum	1975x108x96	2038x168x198
	ESV200	200×150	1900×1425	5cm	5cm/5cm/5cm	Square/Aluminum	2175x108x96	2238x168x198
	ESV240	240×180	2300×1725	5cm	5cm/5cm/5cm	Square/Aluminum	2575x108x96	2638x168x198
	ESV280	280×210	2700×2025	5cm	5cm/5cm/5cm	Square/Aluminum	2975x108x96	3038x168x198
	ESV300	300×225	2900×2175	5cm	5cm/5cm/5cm	Square/Aluminum	3175x108x96	3238x168x198
	ESV360	360×270	3500×2625	5cm	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
16:9	ESW180	180×102	1700×956	25cm	5cm/5cm/5cm	Square/Aluminum	1975x108x96	2038x168x198
	ESW200	200×113	1900×1070	25cm	5cm/5cm/5cm	Square/Aluminum	2175x108x96	2238x168x198
	ESW240	240×135	2300×1295	25cm	5cm/5cm/5cm	Square/Aluminum	2575x108x96	2638x168x198
	ESW280	280×158	2700×1520	25cm	5cm/5cm/5cm	Square/Aluminum	2975x108x96	3038x168x198
	ESW300	300×169	2900×1632	25cm	5cm/5cm/5cm	Square/Aluminum	3175x108x96	3238x168x198
	ESW360	360×203	3500×1970	25cm	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
16:10	ESH180	180×113	1700×1063	25cm	5cm/5cm/5cm	Square/Aluminum	1975x108x96	2038x168x198
	ESH200	200×125	1900×1188	25cm	5cm/5cm/5cm	Square/Aluminum	2175x108x96	2238x168x198
	ESH240	240×150	2300×1438	25cm	5cm/5cm/5cm	Square/Aluminum	2575x108x96	2638x168x198
	ESH280	280×175	2700×1688	25cm	5cm/5cm/5cm	Square/Aluminum	2975x108x96	3038x168x198
	ESH300	300×188	2900×1813	25cm	5cm/5cm/5cm	Square/Aluminum	3175x108x96	3238x168x198
	ESH360	360×225	3500×2188	25cm	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
