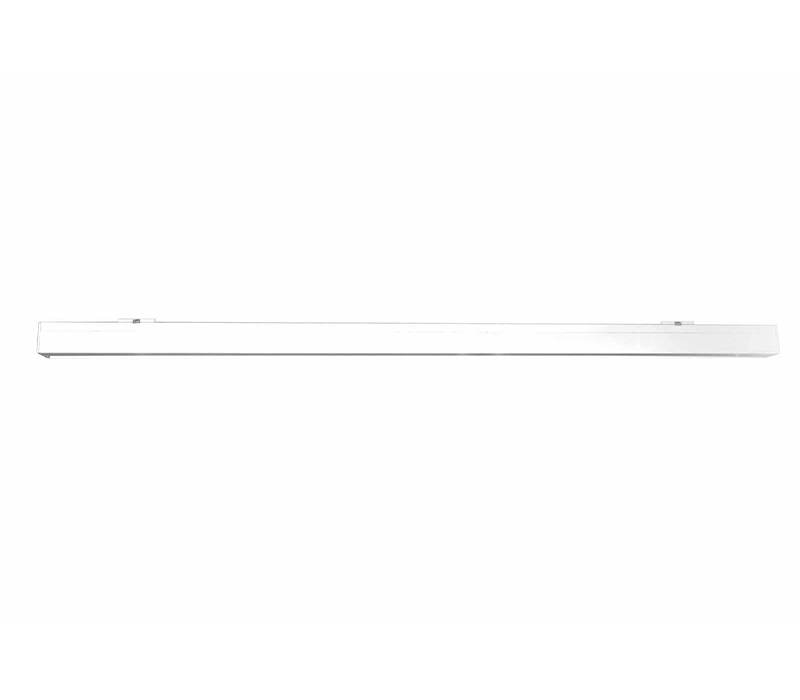

Intelligent Square Electric Screen

The Intelligent Square Electric Screen is a fully contained in-ceiling electric projection screen. It features integrated side panel connections, ultra-flat glass fabric, and intuitive limit adjustment. Choose IR/RF remote control for seamless operation.

Viewing Angle：
Gain：
Compatible Projection：
Screen Material：
Frame Material：
Available Sizes：

Chat Now Message Email

Integrated Structure Design

· Fully Concealed Ceiling Recess: Flush with ceiling when retracted, achieving "invisible cinema" effect

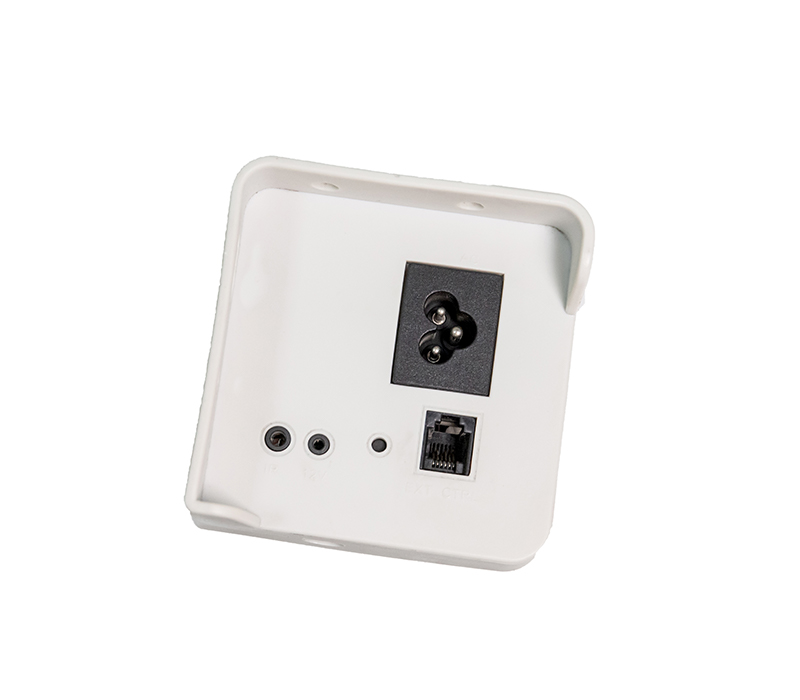

· Modular Side-Panel Interface System: Power, control, and signal interfaces integrated on side panel for easy installation and maintenance

· Industrial-grade aluminum casing: features a premium appearance and offers moisture resistance and scratch resistance
Professional-Grade Visual Performance

· Ultra-Flat Fiberglass Material: Multi-layer composite structure achieves mirror-like flatness

· Zero Optical Distortion: Special warp-weft weaving technology eliminates thermal expansion deformation

· Accurate Color Reproduction: Neutral white base layer faithfully reproduces projector's native color gamut

· Wide-Angle Uniformity: Micro-bead optical coating, >90% brightness uniformity at 160° viewing angle
Intelligent Control System

· Dual-Band Remote System: IR + RF dual control for stable operation through walls and obstacles

· Silent Linear Motor: Sufficient power, <25dB operation noise, library-grade quiet standard
Application Scenarios

· Whole-Home Smart Cinema：Living Room Hidden Theater、Bedroom Ceiling Cinema、Smart Home Integration

· Commercial Space Integration：Corporate Meeting Rooms、Hotel Function Rooms、Exhibition Digital Signage、Education Smart Classrooms

title Brochure

Format	ID NO.	Product Size (WxH cm)	View area (WxH mm)	Black drop (cm)	Black border ↓ / ← / → (cm)	Housing Shape/Material	Housing dimensions LxWxH(mm)	Packing Size LxWxH(mm)
1:1	ESS180i	180×180	1720×1720	/	0cm/4cm/4cm	Square/Aluminum	1975x108x96	2038x168x198
	ESS200i	200×200	1920×1920	/	0cm/4cm/4cm	Square/Aluminum	2175x108x96	2238x168x198
	ESS240i	240×240	2320×2320	/	0cm/4cm/4cm	Square/Aluminum	2575x108x96	2638x168x198
	ESS280i	280×280	2720×2720	/	0cm/4cm/4cm	Square/Aluminum	2975x108x96	3038x168x198
	ESS300i	300×300	2920×2920	/	0cm/4cm/4cm	Square/Aluminum	3175x108x96	3238x168x198
	ESS360i	360×360	3500×3500	/	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
4:3	ESV180i	180×135	1720×1290	15cm	4cm/4cm/4cm	Square/Aluminum	1975x108x96	2038x168x198
	ESV200i	200×150	1920×1440	15cm	4cm/4cm/4cm	Square/Aluminum	2175x108x96	2238x168x198
	ESV240i	240×180	2320×1740	15cm	4cm/4cm/4cm	Square/Aluminum	2575x108x96	2638x168x198
	ESV280i	280×210	2720×2040	15cm	4cm/4cm/4cm	Square/Aluminum	2975x108x96	3038x168x198
	ESV300i	300×225	2920×2190	15cm	4cm/4cm/4cm	Square/Aluminum	3175x108x96	3238x168x198
	ESV360i	360×270	3500×2625	15cm	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
16:9	ESW180i	180×102	1720×968	30cm	4cm/4cm/4cm	Square/Aluminum	1975x108x96	2038x168x198
	ESW200i	200×113	1920×1080	30cm	4cm/4cm/4cm	Square/Aluminum	2175x108x96	2238x168x198
	ESW240i	240×135	2320×1305	30cm	4cm/4cm/4cm	Square/Aluminum	2575x108x96	2638x168x198
	ESW280i	280×158	2720×1530	30cm	4cm/4cm/4cm	Square/Aluminum	2975x108x96	3038x168x198
	ESW300i	300×169	2920×1643	30cm	4cm/4cm/4cm	Square/Aluminum	3175x108x96	3238x168x198
	ESW360i	360×203	3500×1970	30cm	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
16:10	ESH180i	180×113	1720×1075	30cm	4cm/4cm/4cm	Square/Aluminum	1975x108x96	2038x168x198
	ESH200i	200×125	1920×1200	30cm	4cm/4cm/4cm	Square/Aluminum	2175x108x96	2238x168x198
	ESH240i	240×150	2320×1450	30cm	4cm/4cm/4cm	Square/Aluminum	2575x108x96	2638x168x198
	ESH280i	280×175	2720×1700	30cm	4cm/4cm/4cm	Square/Aluminum	2975x108x96	3038x168x198
	ESH300i	300×188	2920×1825	30cm	4cm/4cm/4cm	Square/Aluminum	3175x108x96	3238x168x198
	ESH360i	360×225	3500×2188	30cm	5cm/5cm/5cm	Square/Aluminum	3775x108x96	3838x168x198
